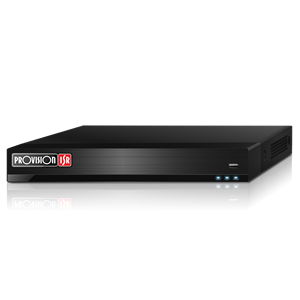

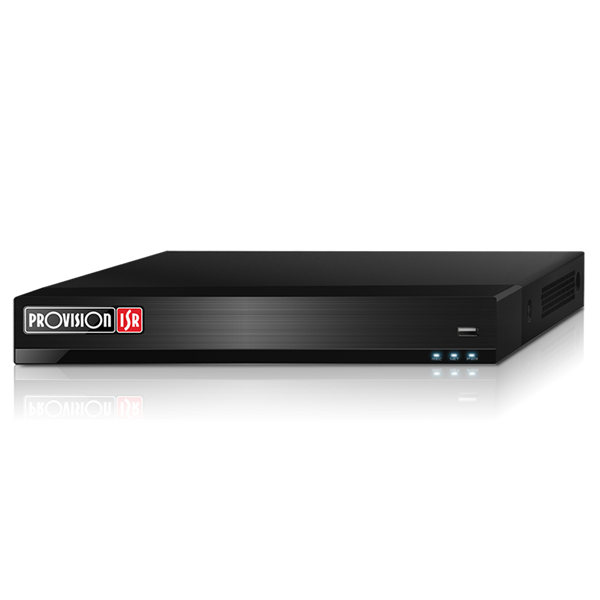

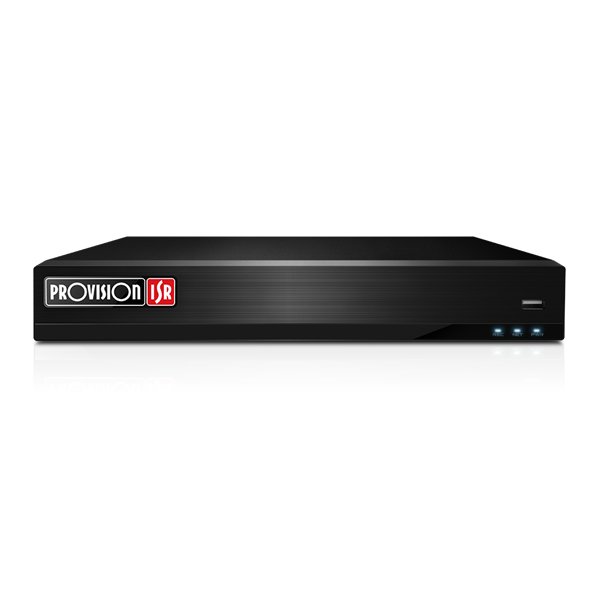

SH-4100A5N-2L(MM) 4 ערוצי AHD + ערוצי 2 ip 2mp

Input: 4 Channel AHD/ TVI /Analog (BNC) + 1 Channel IP (Over Network)

Output: VGA: 1024x768

HDMI: 1920x1080

CVBS (Can be used as Spot)

4CH AHD/TVI/Analogue + 1CH IP

AHD/TVI: 1080P

FPS: 50 (PAL) / 60 (NTSC)

Resolution: 1920x1080 (PAL/NTSC)

AHD/TVI: 1080P Lite

FPS: 100 (PAL) / 120 (NTSC)

Resolution: 928x960 (PAL/NTSC)

(Digitally upscaled to 1920x1080)

AHD/TVI: 720P

FPS: 100 (PAL) / 120 (NTSC)

Resolution: 1280x720 (PAL/NTSC)

Analogue: 960H

FPS: 100 (PAL) / 120 (NTSC)

Resolution: 960x575 (PAL) / 960x480 (NTSC)

IP: 1080P

FPS: 25 (PAL) / 30 (NTSC)

Resolution: 1920x1080 (PAL/NTSC)

4 Channel Simultaneously (1 Channel IP)

Input: 4 Channel (RCA)

Output: 1 Channel (RCA)

2 Way audio

1 x SATA (Up to 6TB)

2 x USB2.0

RJ-45: 100Mbps

Input: 4 (Dry-Contact)

Output: 1 (Dry-Contact)

1 x RS485

Protocol: CoC/Pelco DP/Samsung/Visca (IP Over ONVIF)
